| G.V.W.R. | 14,000 lbs |
|---|---|
| G.A.W.R. | 7,000 lbs / Axle |
| TONGUE | 8” I-Beam |
| FRAME | 8” I-Beam |
| CROSSMEMBERS | 3-1/2″ x 3-1/2″ Tubing |
| BED FRAME | 4″ Channel |
| BED CROSSMEMBERS | 3″ Channel |
| AXLES | (2) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake |
| SUSPENSION | Multi-Leaf Spring |
| COUPLER | 2-5/16” Adjustable |
| JACK | (1) 10,000 lb Drop-Leg |
| WHEELS | 16” 8-Hole Wheels |
| TIRES | ST235/80 R16 LRE |
| SIDES | 24″ High, 10 Gauge |
| FLOOR | 10 Gauge Smooth Plate |
| STORAGE | Tongue-mount Toolbox (hyd. storage) |

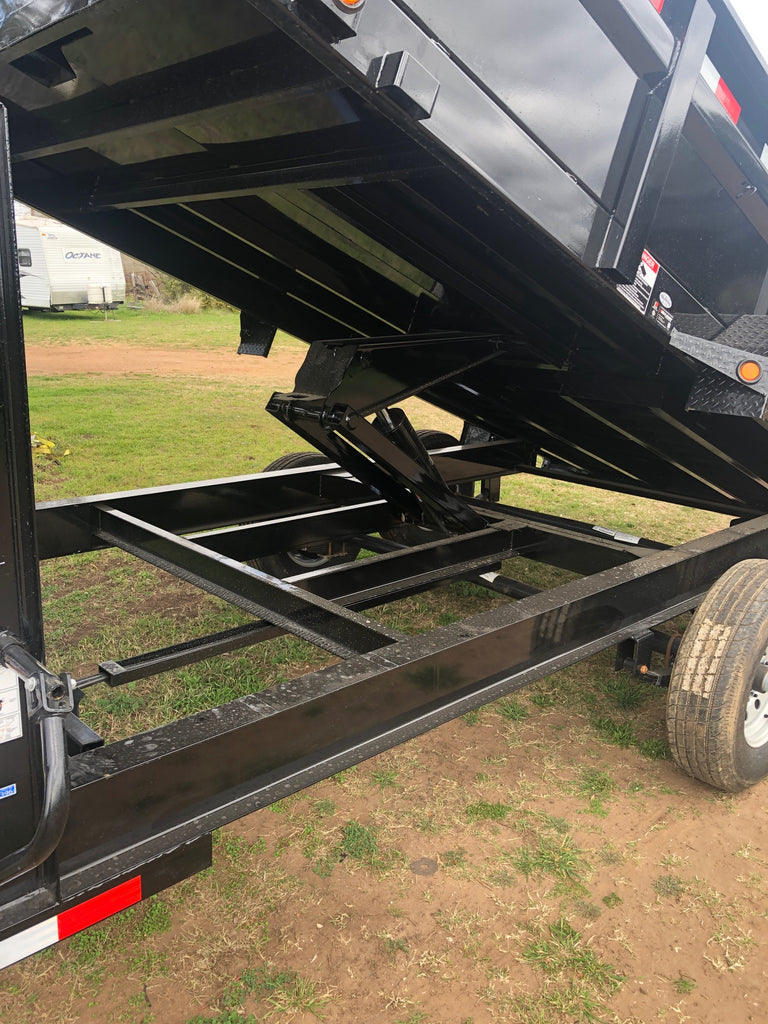

FENDERSSteel Diamond PlateRAMPS80″ x 16″ Rear Slide-In RampsGATE2-Way Spreader GatePUMP12v Dual Acting Hydraulic Pump w/Manual Gravity Down ValveCONTROLLER2-Button w/12′ Control CableBATTERY12v Battery w/5amp Trickle ChargerCYLINDER5″ x 15.75″ x 2″ Cylinder w/Scissor HoistTARPE-Z Lock Mesh Tarp System w/CoverD-RINGS(4) 3″ Weld-on D-ringsLIGHTSLED Stop, Tail, & Clearance LightsWIRING16 Ga. 5-Way Double-Insulated Wire HarnessPLUG7-way Cold Weather CordSAFETY CHAINS(2) 5/16″ x 28″ Grade 70PRETREATMENTMechanical and/or Chemical Pretreatment for Maximum Paint AdhesionFINISH(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
